Post Processing

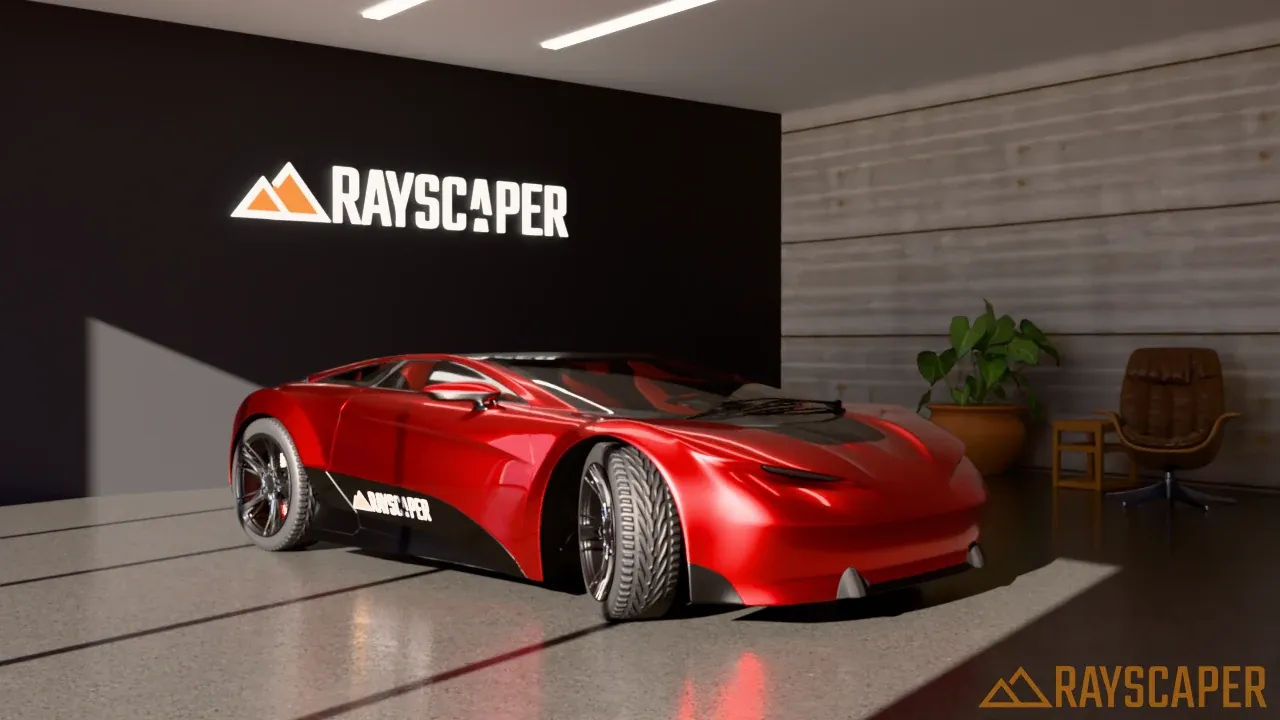

A red concept car in a showroom with a glowing sign, lit by sunlight through the windows

A car showroom with the default post-processing settings. The examples on this page all start from this render.

Rayscaper renders images in high dynamic range (HDR): the render stores light far brighter than white, like the sun and lamps. Post-processing turns that result into an image you can display and save. It also adds effects like bloom and vignetting. These settings are in the Post Processing section of the Scene Editor.

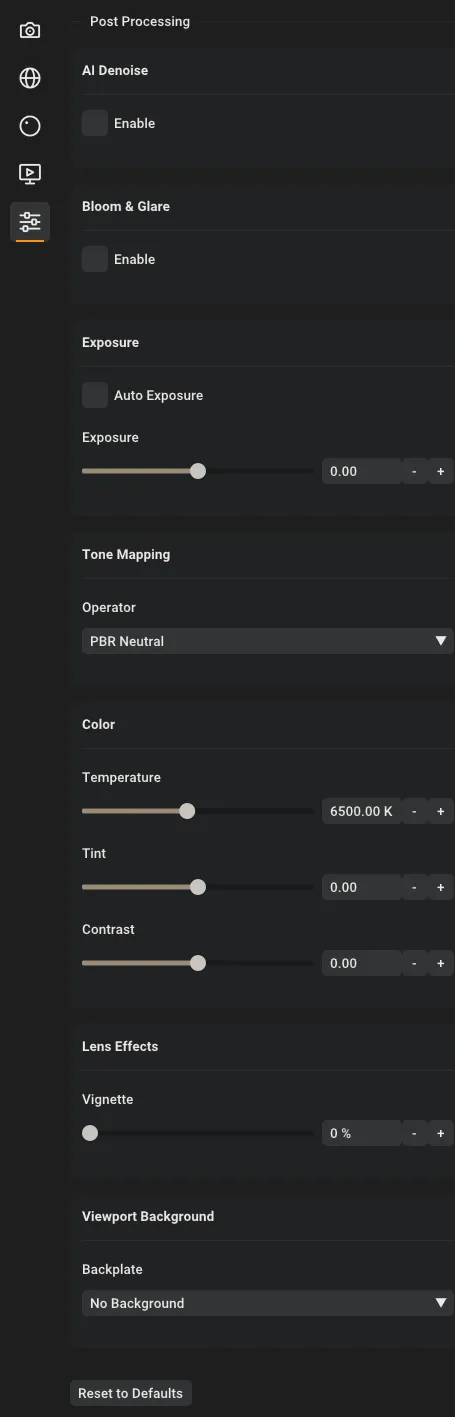

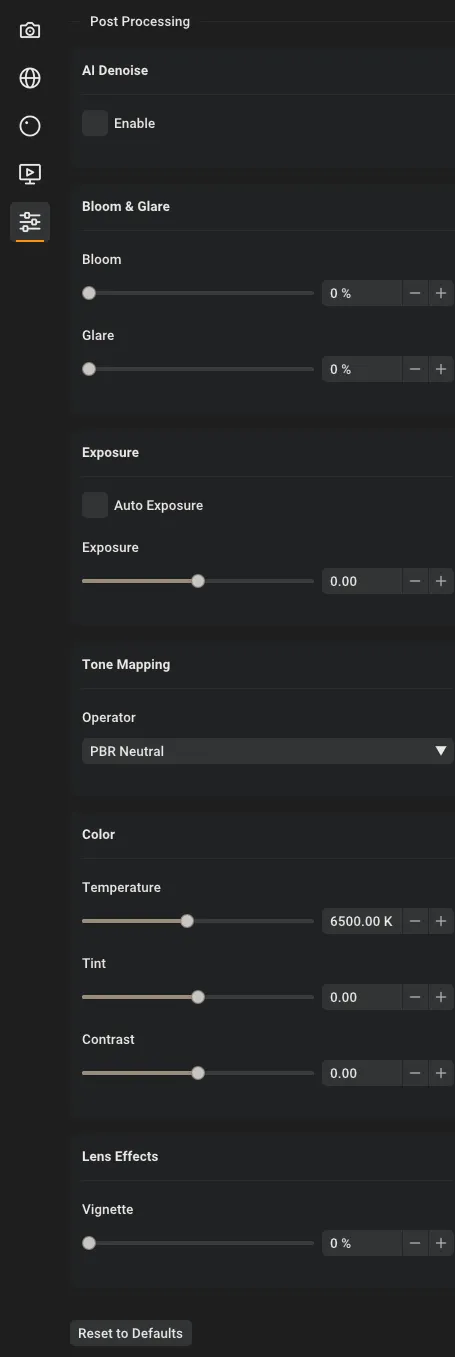

Post processing settings

Post processing settings.

The section starts with the Preset list, followed by AI Denoise, Bloom & Glare, Exposure, Tone Mapping, Color and Lens Effects. When you use a diagnostic render method, such as normals or texture coordinates, the Exposure, Tone Mapping, Color and Lens Effects controls are hidden. Those passes are shown without tone mapping.

The Preset list at the top of the section switches the whole look of the render at once. Open the list and rest the mouse on a preset to see it on your render before you choose it. When you move away or close the list, your settings come back.

PresetLook
NeutralThe look of a new model: colors as the materials define them, no effects.
Crisp DaylightA little more contrast and a slightly cool white balance, for sunny exteriors.
Warm InteriorACES Filmic, a warm white balance and a soft glow around the lamps, for cozy interiors.
Soft FilmFilmic, low contrast and gentle highlights, for a calm, airy image.
CinematicACES Filmic, strong contrast and dark corners that draw the eye to the center.
Night LightsA cool night with glowing lamps and star-shaped glare on the brightest lights.
Product StudioNeutral colors with a little extra contrast, for products on a plain background.

The built-in looks keep your exposure and AI Denoise, which depend on the scene rather than on the look.

When you change a setting after choosing a preset, the list shows it as modified, for example Cinematic (modified), instead of forgetting where you started. From there:

  • Save as New Preset… (or the save button next to the list) stores the settings of the section under a name of your own. Your presets appear under My Presets in every model. Unlike the built-in looks, they keep every setting of the section, the exposure and AI Denoise included.
  • Save, which appears next to the list while a preset of your own is modified, saves the changes into it. A built-in preset never changes.
  • Revert to puts back the settings of the preset you started from.
  • Previous Settings at the top of the list brings back the settings you had before you chose a preset or reverted, when no preset has them. They’re kept until you open another model.
  • To rename or delete one of your presets, rest the mouse on it in the list and click the pencil or the bin, or right-click it. You don’t need to choose it first.
  • Use for New Models makes a new model start with this preset, and so does Reset to Defaults. Right-click any preset in the list to use it for new models without choosing it. Models that have Rayscaper settings already keep theirs. The list marks this preset with New models.
  • Open Presets Folder shows the presets as files, one JSON file per preset. Copy them to another computer or share them with colleagues: the list picks up files you add the next time you open it.

The Environment and Render sections have the same list.

Finish your render takes a raw render of a wine bar to a finished image without leaving Rayscaper. It shows AI Denoise, exposure in stops and the tone mapping operators PBR Neutral, ACES Filmic and Filmic. Then it adds bloom and glare on the bulbs, white balance, contrast and vignette, and ends with Reset to Defaults. To follow along, download its scene, rayscaper-post-processing.skp (8.9 MB): a wine bar at night. It works with the free version of Rayscaper.

Removes the grain from a render with an AI denoiser, so fewer samples give a clean image and the render takes less time.

Enable: Turns denoising on or off. It’s on for a new model. Models saved before Rayscaper turned it on by default keep their setting. You can also toggle it with the Denoise button (the sparkle icon) on the render window toolbar. The normals, coordinates, Material ID and Object ID render methods aren’t denoised, since they show exact values with hard edges.

Both renders use 64 samples per pixel:

The showroom at 64 samples per pixel without denoising, grainy

Grain everywhere, strongest on the dark wall and the ceiling.

Adds a soft glow around bright areas (bloom) and star-shaped streaks on light sources (glare). Both start at the parts of the image that are brighter than white, after the exposure, so the same settings work for the lamps of a dim room, a bright window and the sun. A light far brighter than white glows like a lamp, it doesn’t flood the image.

Bloom: Strength and size of the soft glow (0-100%). 0% turns it off.

Glare: Strength and length of the star-shaped streaks (0-100%). 0% turns it off.

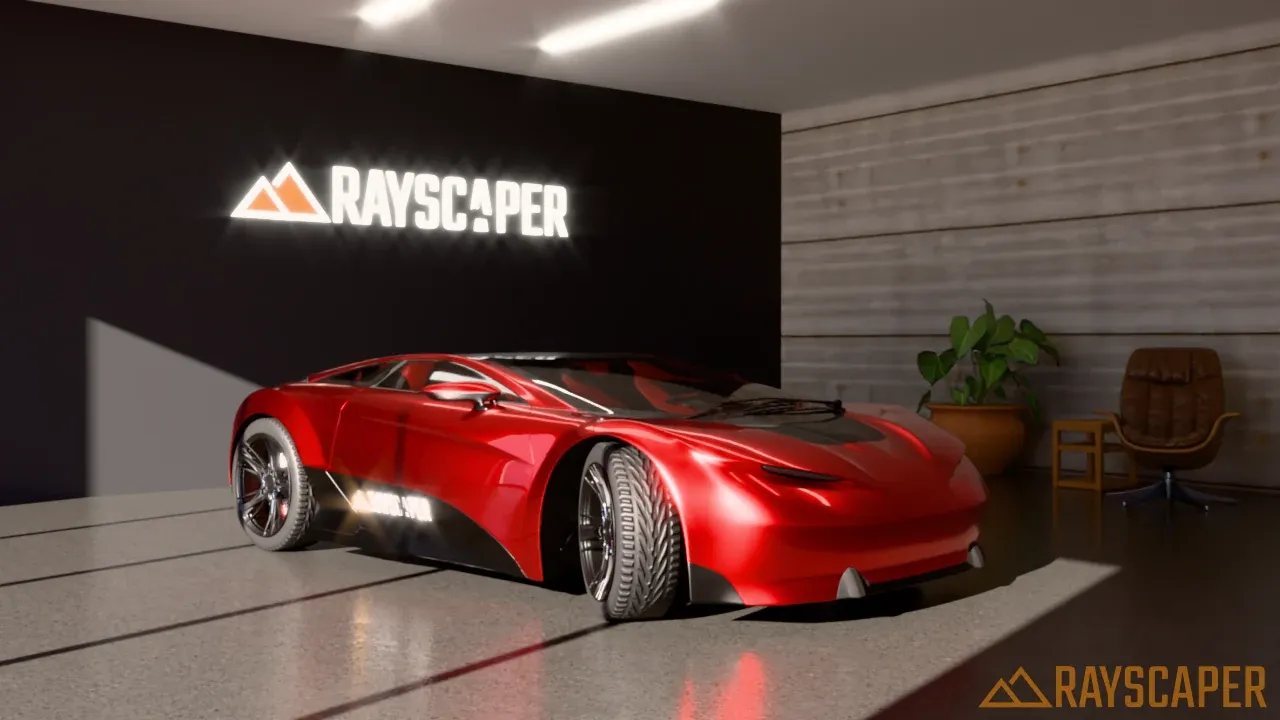

Glare Rays: Number of rays in the star: 4 gives a cross, 6 (the default) and 8 a star. Only shown while Glare is above 0%.

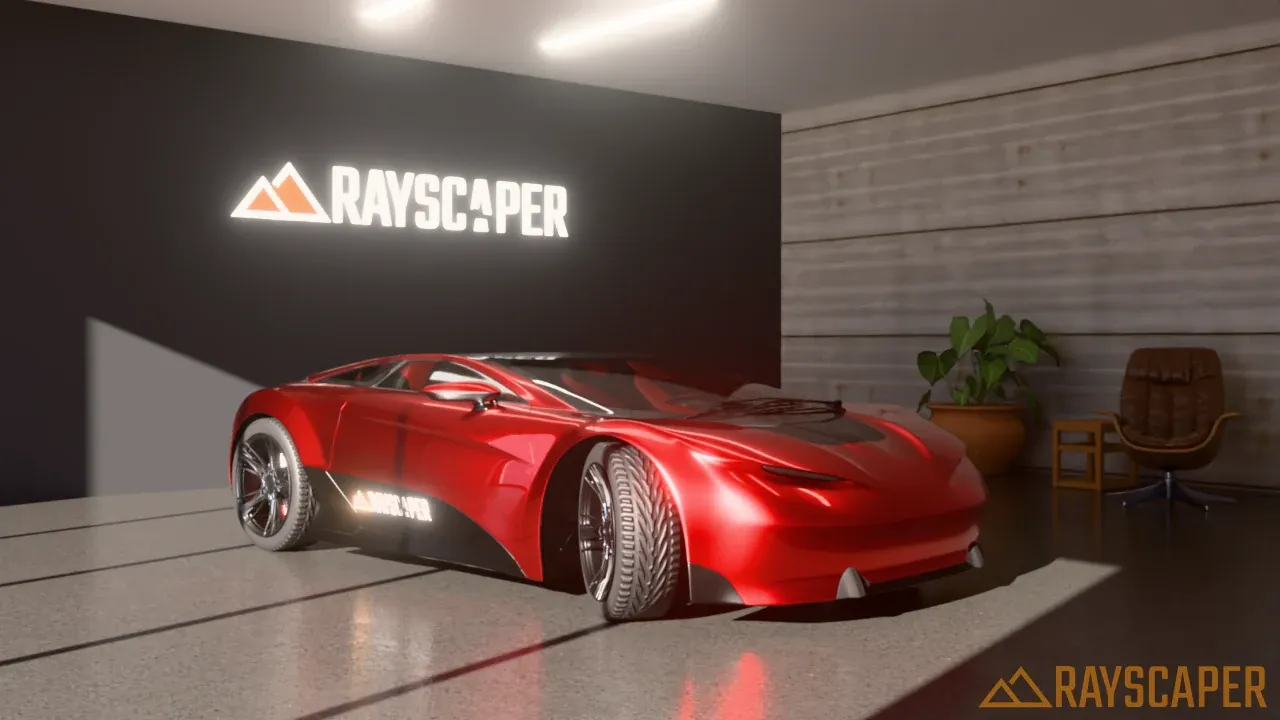

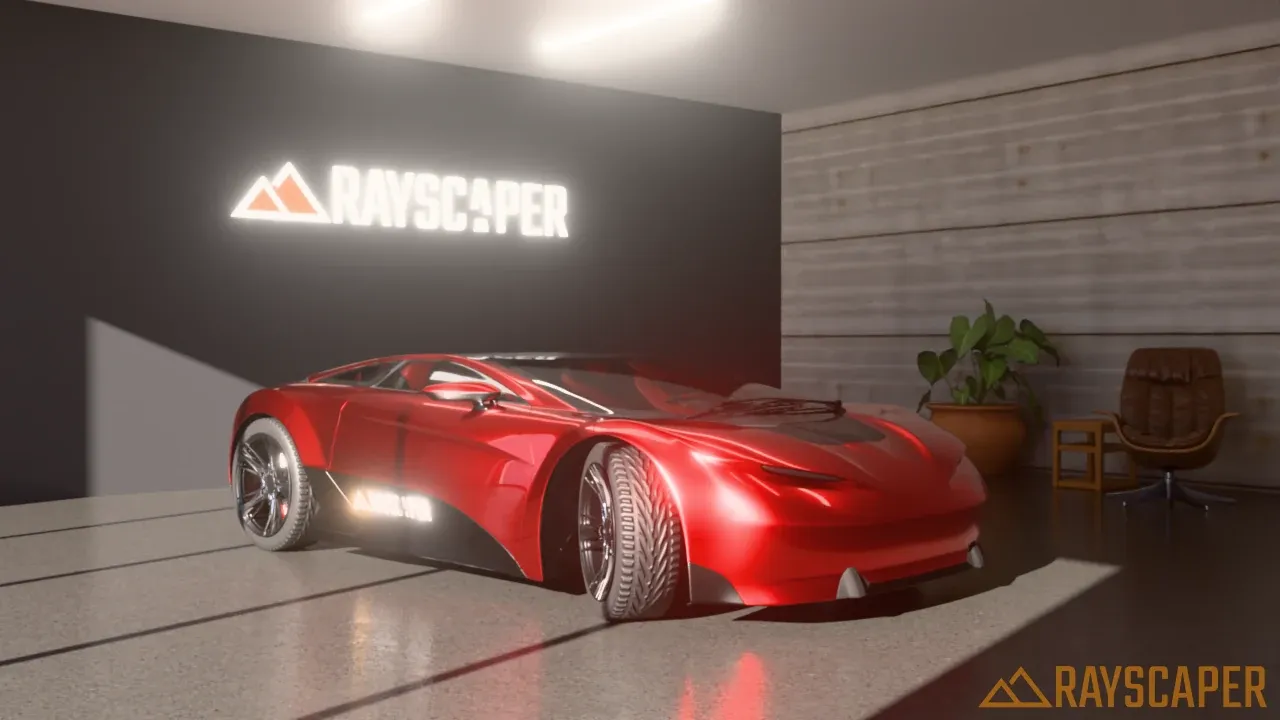

In the showroom the sign, the light strips in the ceiling and the sunlit logo on the door are bright enough to glow:

The showroom without bloom and glare

No bloom or glare: the sign has crisp edges.

Controls the overall brightness of the image, like the exposure setting of a camera.

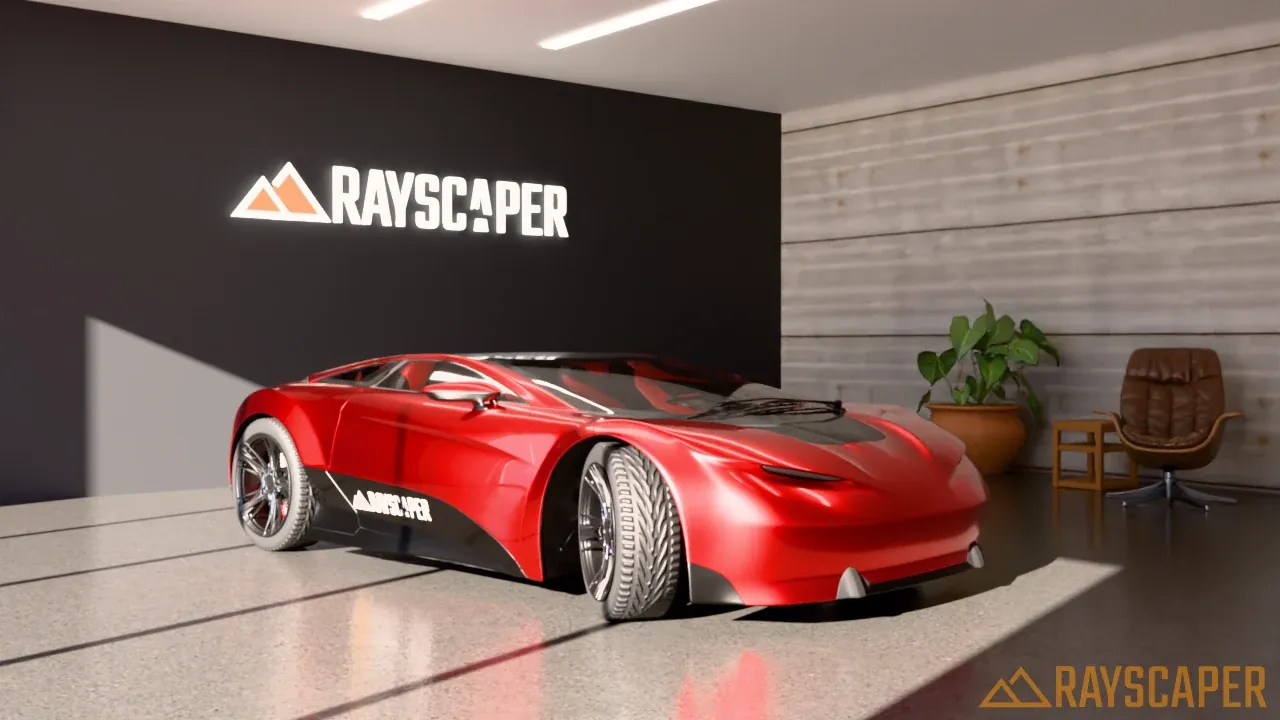

Exposure: Brightness in EV stops (-10 to +10, default 0). Each stop doubles or halves the brightness: +1 EV is twice as bright, -1 EV half as bright.

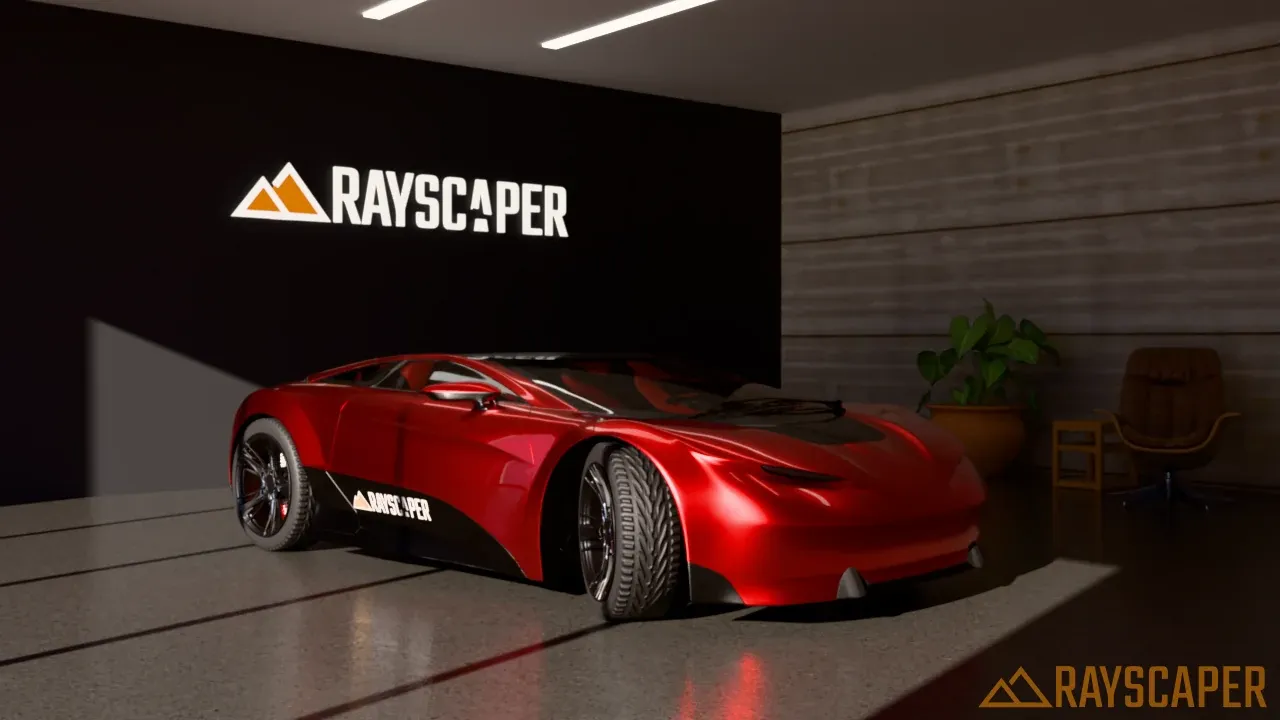

The showroom at -1 EV, darker

Half as bright: the sunlit floor keeps its detail, the room gets dark.

Auto Exposure: Lets Rayscaper set the exposure from the brightness of the scene, like a camera’s light meter. It’s on for a new model, whose sky is much brighter outside than in a room; models saved before keep their setting. You can also toggle it with the Auto exposure button on the render window toolbar. While it’s on, the Exposure slider is replaced by:

Compensation: An offset on top of the automatic exposure, in EV stops (-5 to +5, default 0). Use it to make an auto-exposed image intentionally brighter or darker, for example for a moody night scene.

A render contains a much wider range of brightness than a screen can show. The tone mapping operator decides how that range is compressed, which mostly affects bright highlights and colors.

Operator: Choose the tone mapping algorithm. The default is PBR Neutral.

OperatorLookWhen to use
PBR Neutral (default)Keeps colors close to the material colors you set, with minimal hue shifts. Highlights roll off gently.A good default for most work, especially product and material renders where colors must be accurate.

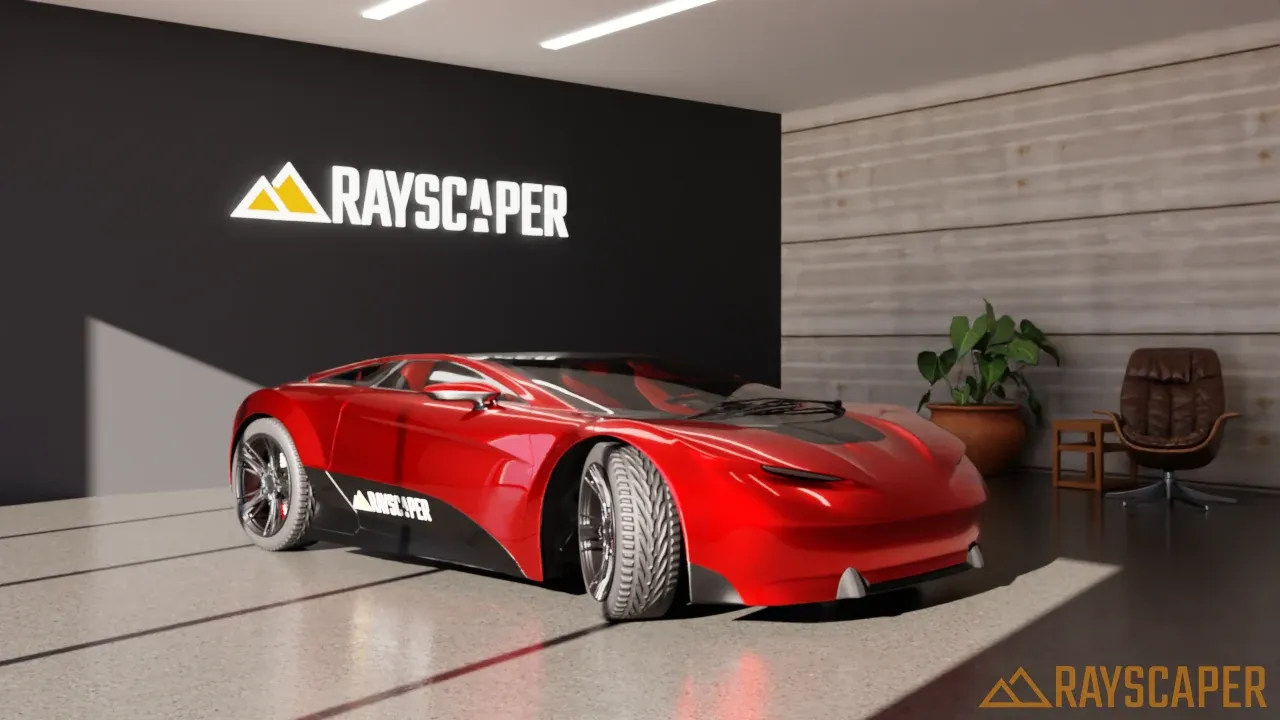

ACES FilmicThe film look used in the movie industry: rich contrast, very bright areas fade toward white.Cinematic architectural renders, scenes with strong sunlight or bright light sources.

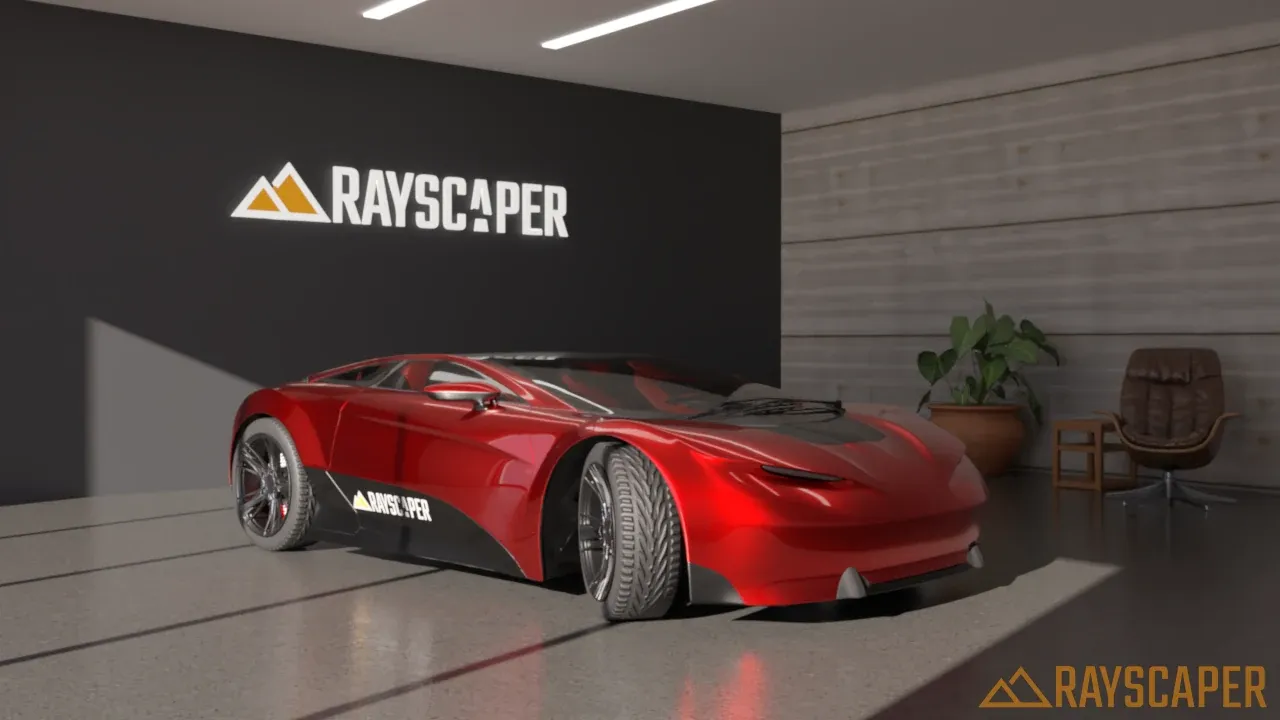

FilmicSofter contrast that keeps detail in the shadows.Interiors and scenes with a lot of dark areas.

The showroom has deep shadows, a sunlit floor and glowing lamps, so the differences between the operators show well. Look at the sunlit floor, the sign and the red of the car:

The showroom with the PBR Neutral operator

Scenes that used the Reinhard or Linear operators of older versions open with PBR Neutral. To adjust the colors of a render in other software, save it as an EXR, which holds the render before tone mapping. Saving an EXR needs a license.

Adjusts white balance and contrast.

Temperature: White balance in Kelvin (2000-12000 K, default 6500 K, which is neutral). Lower values make the image warmer (more orange), higher values cooler (more blue).

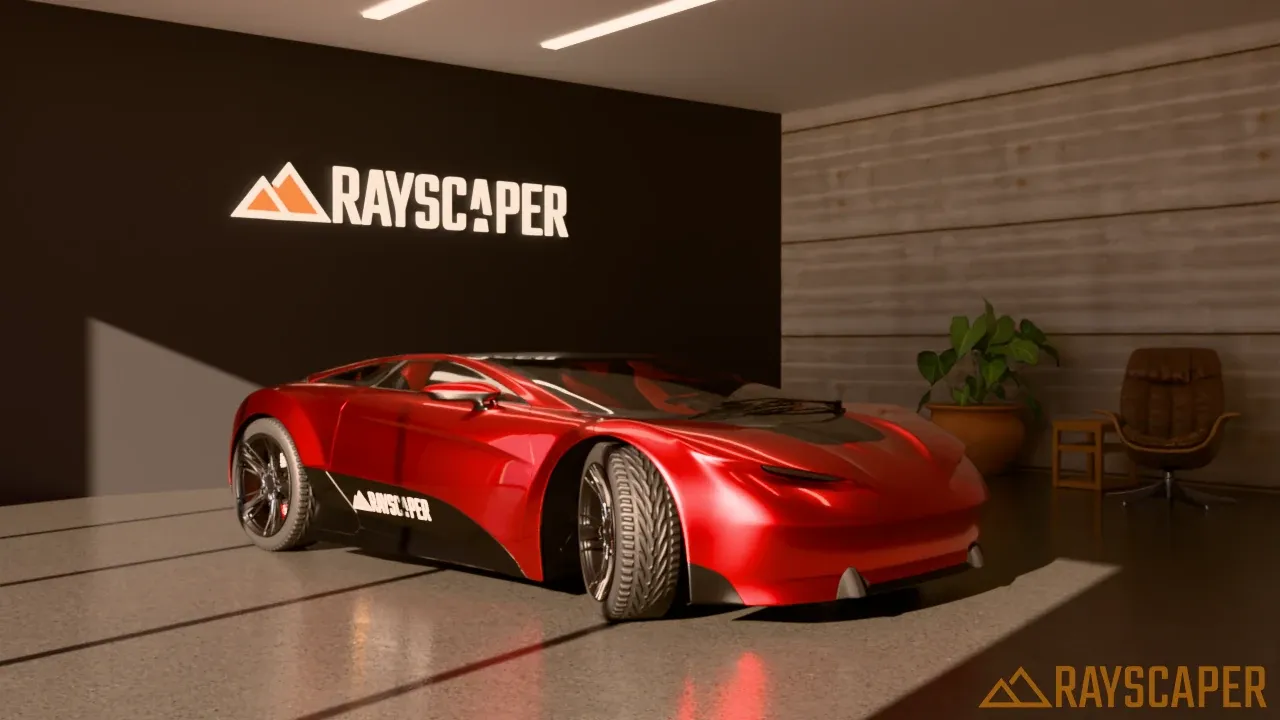

The showroom with a white balance of 4000 K

Tint: Shifts the white balance between green (-100) and magenta (+100). Default 0.

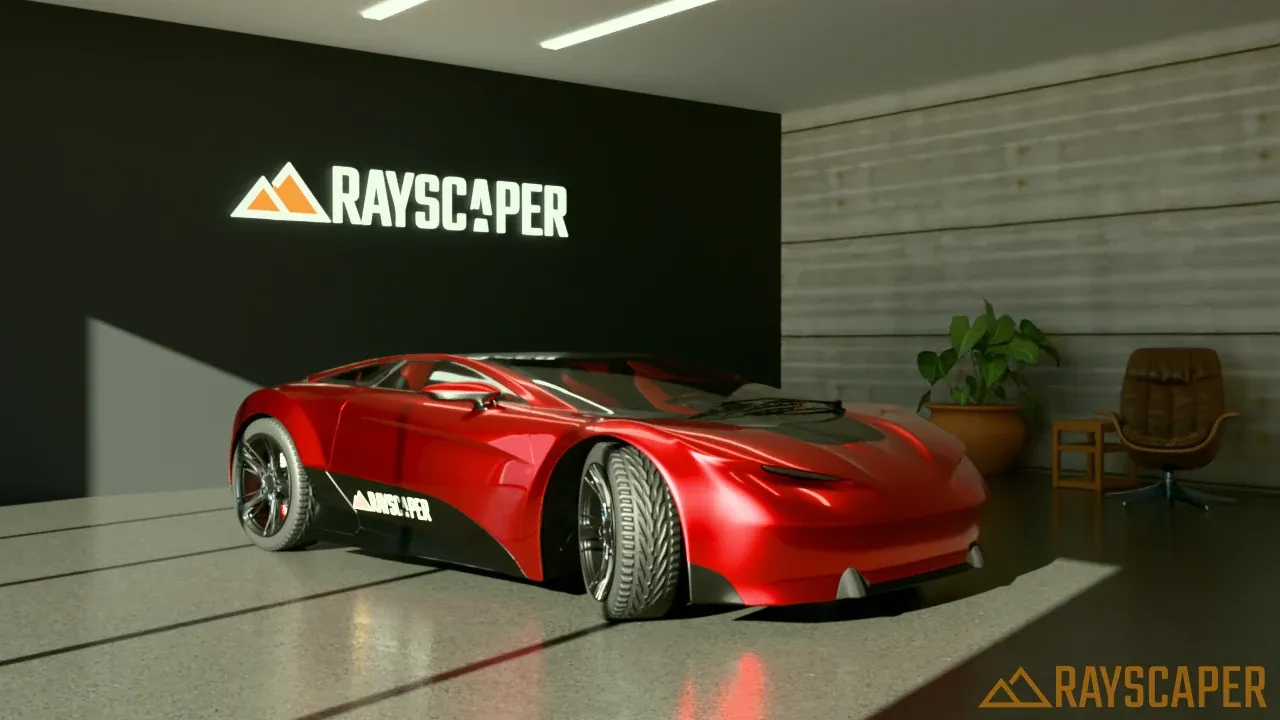

The showroom with a tint of -50

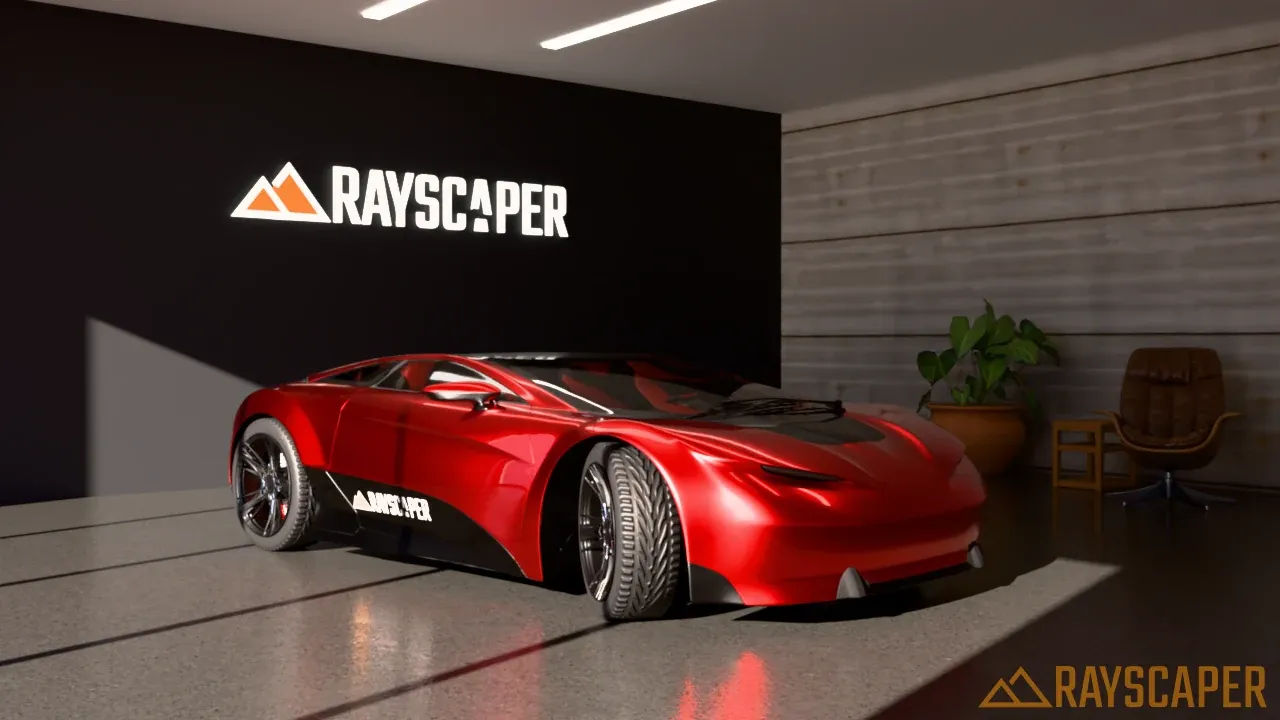

Contrast: Flattens (-100) or increases (+100) the contrast of the image. Default 0.

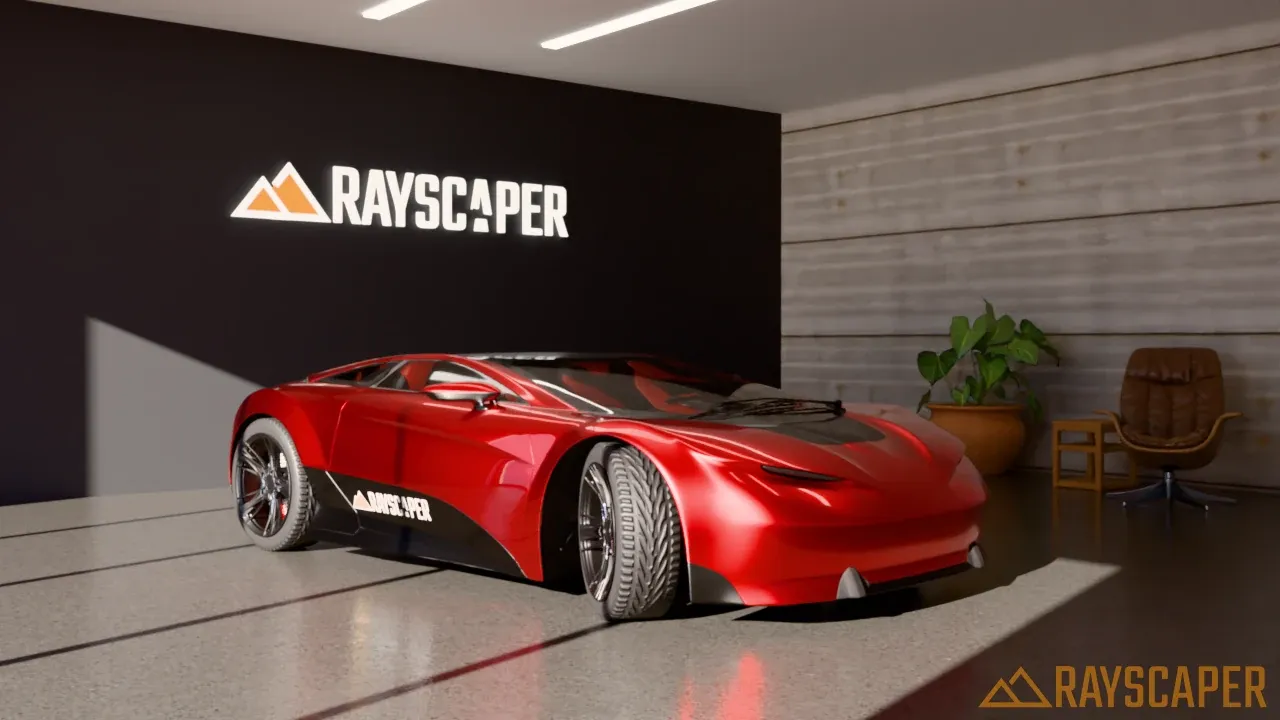

The showroom with a contrast of -50

Vignette: Darkens the edges of the image to draw attention to the center (0-100%). Set to 0% to disable.

The showroom without vignette

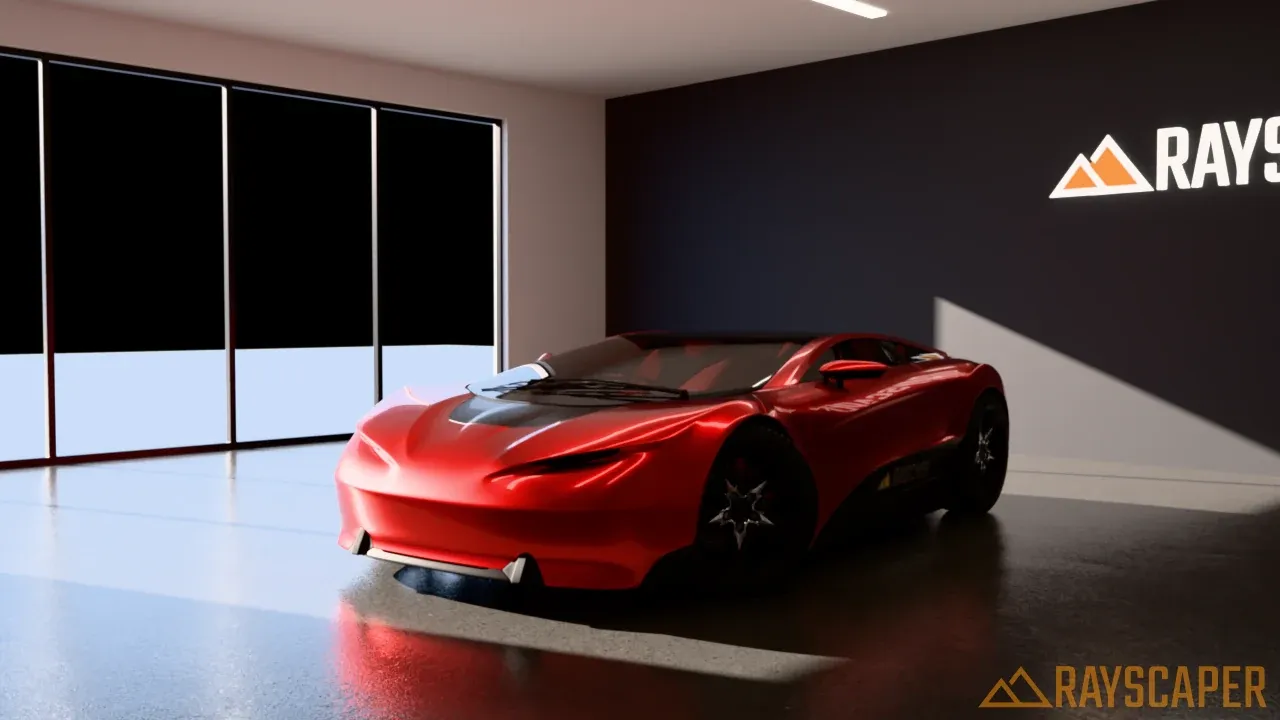

When you turn on Transparent in the Environment section, the viewport shows a checkerboard where the image is transparent. It’s a visual aid only and isn’t included when you save a render.

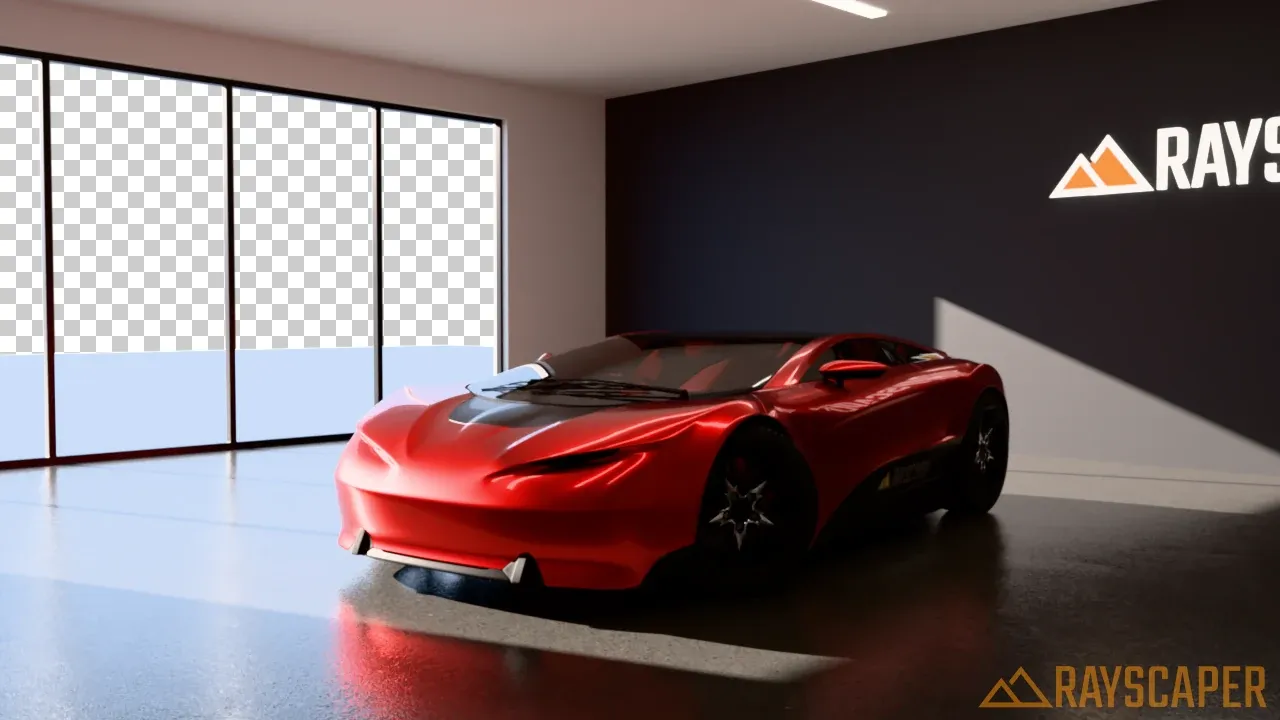

The showroom with a transparent environment: a checkerboard shows through the windows

The showroom from the other side, with a transparent environment: the checkerboard shows through the windows.

To see the render on a backplate or a photo of the site, click Open… under Viewport Background and choose a PNG or JPEG image. It shows instead of the checkerboard, centered and scaled to fill the render. If the image has a different aspect ratio than the render, Match Render to Image changes the resolution so the whole image lines up.

Saved renders stay transparent, so you can still composite them in an image editor. To save the render over the image instead, turn on Include in Saved Images. Rayscaper then saves PNG files with the image behind the render, also for Render Scenes and animations. EXR files and passes such as Material ID always stay transparent.

The Reset to Defaults button at the bottom of the section resets all post-processing settings to those of a new model, with AI Denoise and Auto Exposure on, or to the preset you use for new models.


The car on this page is based on Car Concept by Eric Chadwick, © 2024 Darmstadt Graphics Group GmbH, from the Khronos glTF Sample Assets and licensed under CC BY 4.0. It is shown with different logos and without the metallic flakes in its paint. The showroom is built from CC0 models and textures from Poly Haven.
